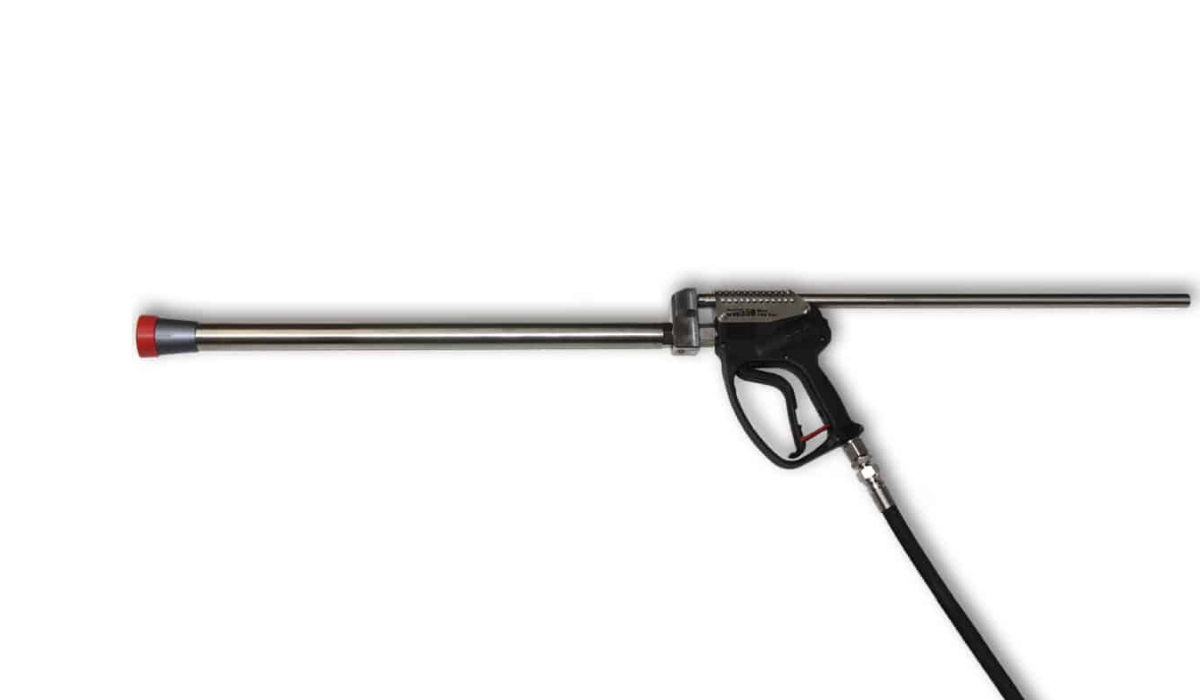

Zero-Thrust Short Cavitation Cleaning gun
CW550 - max. 560 bar (8,122psi)
The CW550 PRO Zero Thrust Cavitation Cleaning Gun is used according IMCA guidelines for large offshore cavitation cleaning operations to remove coatings and thick marine growth from ship hulls, propellers, thrusters, rudders, pillars, pipelines, piers, risers and walls with pressures up to 560 bar and flow up to 80 LPM. The CW550 is safe and ergonomic to use with long retro lance to neutralize the reaction force of the cavitation blast and avoid diver fatigue.
Specifications
Minimum pressure: 120 bar (1,740 psi)
Maximum pressure: 560 bar (8,122 psi)
Minimum flow: 28 LPM (7.5 GPM)
Maximum flow: 80 LPM (21 GPM)
Lance length: 750mm (29.5″)
Retro lance length: 1000 mm (39.4″)
Weight: 2800g (6.2lbs)
Weight under water: 1600g (3.5lbs)
According: IMCA guidelines
Certified: SIR
Compatible with: HDE235_99, HDMD235_99, HDE440_96, HDMD410_96
Features
- Improved cavitation technique
- Retro lance to neutralize reaction force
- Intensity adjustable with high-pressure unit
- Durable, salt water resistant materials
- Double-walled stainless steel lance
- Tapered lance tip with visible cover ring
- Ergonomic controls
- Large control lever with “Safety catch”
- Swiveling connection
- Use with single neutrally
Ergonomic handgun / Handle with safety latch / Swiveling hose inlet connection / Stainless steel lance protection / Tapered lance end with red marking / Max. recommended working pressure 560 bar (8122 psi) / Maximum flow 80 LPM (21 gpm) / Safety ring shield on lance around nozzle / / SIR certified / According to IMCA guidelines / Lance length 668mm / Retro lance length 700mm / Weight 2300 gram (under water 1200 gram) / Optional adjustable lance handle
Diesel Driven Steam Generating High-Pressure Washer HDS 1000 DE
The High-Pressure Steam Generating Washer HDS 1000 DE is engineered for the cleaning of crude oil tanks and platforms. It operates with steam temperatures between 80–98°C and offers adjustable pressure settings from 40–200 bar (4–20 MPa) or 2900 PSI. The unit includes a 15-meter premium-quality high-pressure hose (ID 8, 315 bar) and a 1050mm spray lance. Additionally, it features a robust frame suitable for crane or forklift loading and is powered by a diesel engine.
| Flow rate (l/h) | 450 – 900 |
| Working pressure (bar/MPa) | 40 – 200 / 4 – 20 |
| Temperature (for supply 12 °C) (°C) | min. 80 – max. 98 |
| Consumption of heating oil or gas at full load (kg/h) | 5,6 |
| Nozzle size | 048 |
| Fuel tank (l) | 34 |
| Fuels | Light oil / Diesel |
| Drive type | Diesel |
| Motor manufacturer | Yanmar |
| Motor type | L 100 V |
| Number of simultaneous users | 1 |
| Portability | Stationary |
| Weight (with accessories) (kg) | 188,3 |
| Weight incl. packaging (kg) | 194,1 |
| Dimensions (L x W x H) (mm) | 1100 x 750 x 785 |
Optimum ease of use
- Automatic burner cut-out in case of water shortage and overheating.
- The ergonomically designed spray gun reduces holding and pulling
force.
Maximum performance
- High-output burner with upright heating coil and detonation-free continuous ignition.
- For removing stubborn encrustations.
Economical, diesel-powered combustion engine
- Complies with the requirements of exhaust emissions standard EU STAGE V.
- Electro start for effortless starting.
User-friendly operation
- The speed is automatically reduced in standby mode. This protects the engine and saves energy.
- Crane loading possible thanks to the sturdy tubular steel frame.
Technical Data and Equipment
- Diesel engine with electro start
- Energy-saving EASY! Force high-pressure gun for fatigue-free work
- Professional high-performance hot water machine

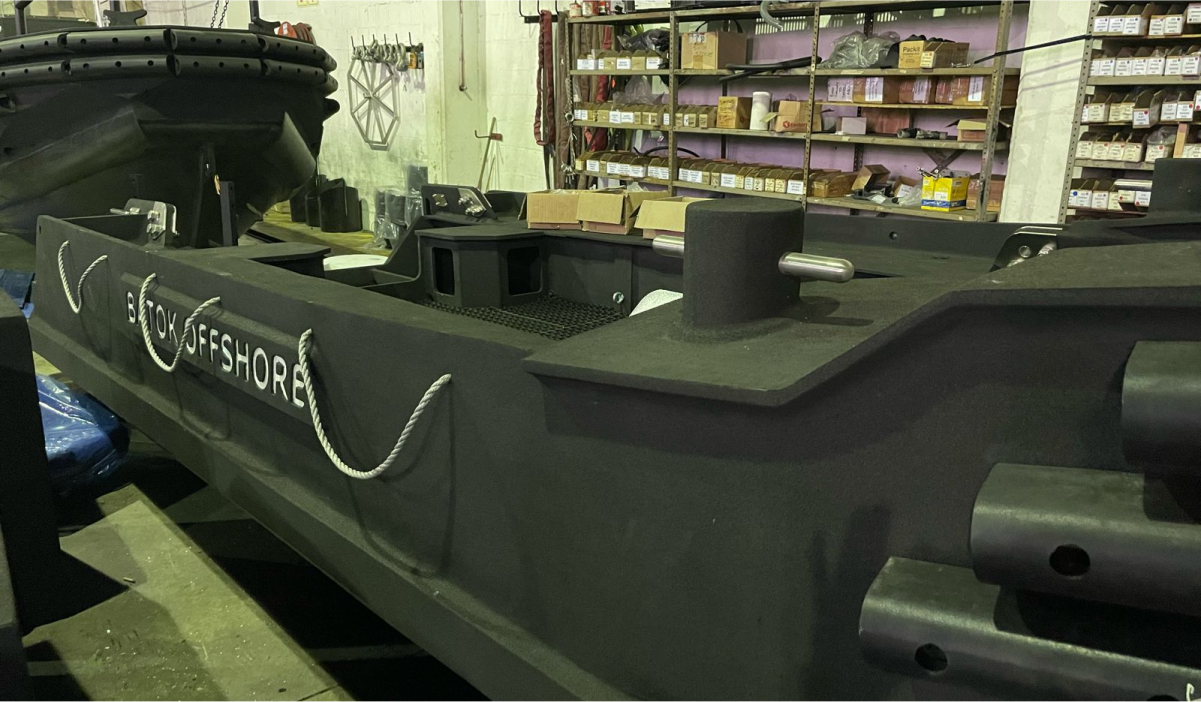

Rhino 600EHD Tiller
Max Payload Dictates
;
The allowable load which can be added to the craft. It includes the weight of engines, personnel and fuel.
Specification
Class: Work Boat
Material: High-Density Polyurethane
Iso Design Category: Category C Length Overall: 5.89M
Breadth: 2.28M
Depth – Bow To Keel: 1.49M
Light Draft: 0.25M
Lightships: 1230Kg
Max. Pax: 7 + Skipper
Max. Payload: 1 770Kg
Rhino 600EHD Tiller Structure
Complete HDPE Construction Rhino 600 HD Deep v Hull; Tiller option: 2 x Stern HDPE Operator Seats; Console Option: HDPE Console & Jockey Seat Arrangement; Pontoon Seating & Upstands; Towing pad eye with SS boss; Rubbing Strake Along Pontoons; Heavy Duty Bow D-Fenders; Heavy Duty Bollards Fwd; Bow Storage/Anchor Compartment With Alu Hatches; Various Cleats And Connecting Points; Four Point Reinforced Lifting Pad-Eyes; Webbed Lifting Slings With Shackles & Master Link; Non Slip Sand Blasted Deck & Work-Safe Rubber Deck Matt; Ducting, Scupper Flaps & Bungs. *Bow Transfer Handrails On Request *T-Top Canopy, Alu Frame Canopy & Seating Options *Electrics, Steering & Nav/Com Options

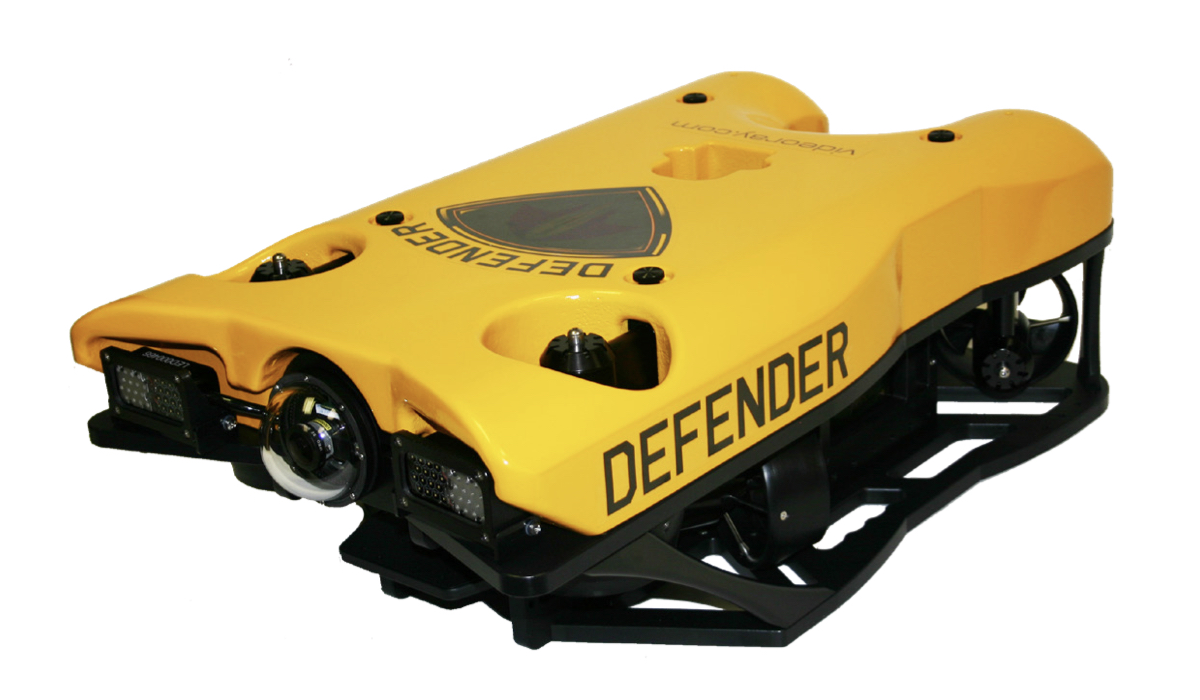

VideoRay Mission Specialist Defender ROV
The VideoRay Mission Specialist Defender ROV is a system which utilizes interchangeable, modular components residing on a single, intelligent network. This topology provides an extremely flexible and customizable platform which can be easily adapted to target specific missions. It is this flexibility which sets the Mission Specialist ROV series apart from current technology in the Remotely Operated Vehicle industry.
System Information
Power Requirements: 110/220 VAC (1 to 2.6 kW)
Total System Weight (Sub & OCC): 32.5 kgs (71.6 lbs)
Cases: 2 Watertight Rugged Hard Cases
Owner’s Manual: Online Digital
System Tool Kit: Basic Tool Kit
Communications Protocol: RS-485 and Ethernet
Warranty: 2 Year Limited
Camera
High Definition: With Ethernet interface (IP)
Video: Up to 1920 x 1080, 25 fps
Mechanical: Standard VideoRay 9 pin connection Ethernet, 12 VDC, RS-485, Auto or Manual Focus, Optical Glass Dome
Features: White Balance Control up to 16x Digital Zoom (64 steps) 13 Megapixel Still Image Capture
Sensitivity: Less than 1 lux (standard)
View Angle: 160° Tilt (180° FoV) Horizontal: 136° Vertical: 91°
Interface: Ethernet/RS-485
Compression: h.264
Diesel Engine Water Pump Set
Machine Information
Application: Firefighting or Line flushing
Model: JY-C450SH708-123
Type: Skid
Flow rate: 708m³/h
Head: 123m
Weight: 2500KG
Size: 4000x1600x2200mm
Specifications
ENGINE
Brand: Cummins
Speed: 1800rpm
Model: QSZ13-G3
Number of cylinders: 6
Power(KW): 450KW(612HP) Cooling method: water-cooled
Starting method: 24V DC electric motor
Governing method: Electric speed governing
Intake method: Turbocharged
Type: Water cooled, inline, 4 strokes, direct injection, forced oil lubricant
PUMP
Type: horizontal, single stage, double suction, centrifugal
Model: 12SH-6A Flow rate:708m3/h
Head: 123m (Rated pressure @ rated speed, not regulated from 0-required pressure)
Rated self-priming height: 4.5m
Rated speed: 1800 (Not 2200rpm)
Inlet size: 300mm (12inch) (Not 200mm)
Outlet size: 200mm (8inch) (Not 150mm) |
Impeller diameter: 510mm (Not 400mm)
Impeller material & Casting material: Cast iron
Shaft material: 45# steel
Sealing method: Mechanical seal
View pump test
CONTROL SYSTEM
Instrument panel: Display revolution speed, water temperature, oil pressure and self-charging currency. Also displays over-speed, low oil pressure, overtemperature, and warning and then it automatically stops if any of those incidences occur. It has an electric key, a start button, and an emergency button.
View controller manual
Standard Equipment
Diesel engine assembly: 1 set
Water pump assembly: 1 set
Shaft connector: 1 unit
Steel mounting base: 1 set
Fuel tank: 1 set
Instrument panel: 1 set
User’s manual: 1 set
View technical operations document
Observer Mini ROV
Observer Mini ROV is an ultra-portable underwater inspection robot fitted with 2 high resolution colour video cameras, one on pan&tilt, and LED lighting, Embedded batteries allow 4h autonomy and operation in the most remote areas down to 150m depth.Thanks to an ancillary plug, various accessories such as sonars, gauges and manipulator can easily be mounted on the Observer
The complete system with its umbilical is packaged in one single transport case with a total weight of 32 kg.
- Ship & Propeller Inspection,
- Rescue works,
- Nuclear Power Stations,
- Pipelines & Oil Platforms
- Contact Probe Inspection
- UT Inspection
- Arnold Inspection
- Observation
- Under Water Minor Cleaning
- Thickness Measurement gauge
Operated on main power supply, the Guardian is equipped with 4 horizontal thrusters allowing inspections over distances up to 400m. Various options and accessories such as sonars, probes and manipulator can be easily embedded thanks to the ancillary plug and the quick release system.
The control console is fitted with a 8’’ LCD screen (15,6” optional), a digital recorder/reader, joysticks and touchpad to select the automatic modes, and two video outputs for additional screens or recorders.
The complete system with its umbilical is packaged in one single transport case with a total weight of 32kg.

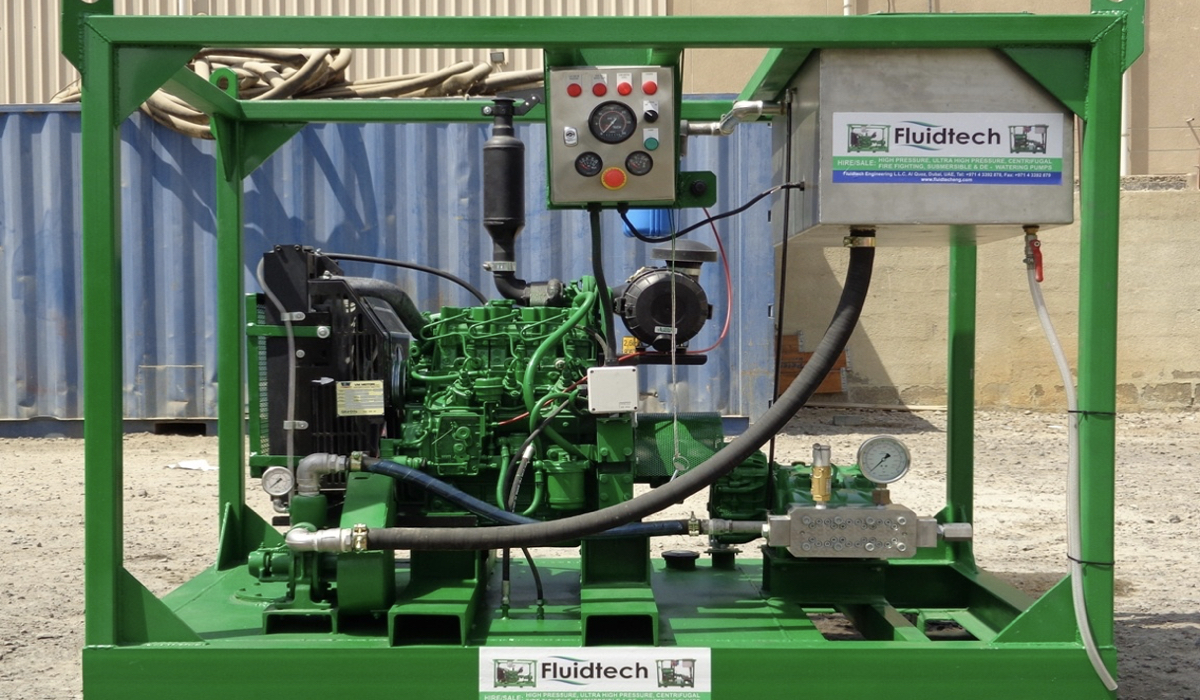

High Pressure Caviblasters
DIMENSIONS
- Pump model VKH 14: Perkins Engine VKH 14
- Discharge Flow: 28LPM (7.4 US gpm)
- Discharge Pressure: 800 bar (11,600 psi)
- Skid Dimensions and Weight: 2.0 mts L x 1.1 mts W x 1.4 mts H
- Weight: 1000 Kgs
- Fuel/ Oil Containment Pan: Yes, Diesel
- Lifting Eyes/Fork lift Slots: Yes
FEEDSYSTEM
- Feed Pump: PacerPumpsI Series
- PumpMaterial & Type: Stainless teel self-priming centrifugal
- MaximumLift: 20’/ 6m
DRIVESYSTEM
- Engine Type: 4-cylinde,Water cooled
- IntakeSystem: Naturally aspirated
- Combustion System: Indirect fuelinjection,Turbo Charqed
- PowerOutput- Maximum: 90HP
- PowerOutput-Continuous: Running at 1800 RPM,
- Clutch Type: Power take-off (PTO)
- StartingSystem: Kick Starter /12V Battery
- Emergency Shut-offs-Automatic: Low oil pressure/High oil temperature/ High coolant temperature
- EmergencyShut-off – Manual: Engine air intake
UF-GUNTM Ultra Safe Hand-Held Dump Style Control Gun
Pressures to 15,000 PSI (1050 Bar)
Quality, Performance Safety:
- Zero Thruster Tuf-Gun 15k
- ½’’ Barrel
- Trigger Safety Latch
- Diffuser Tube Assembly
- Tool-Free Quick Change Cartridge
- Working Pressures Up To 15,00 PSI
- Tool-free 60-second quick change cartridge.
- Tool-free fully adjustable shoulder stocks and hand grips.
- Designed for underwater or topside applications where balance is critical.
- The equal forward and backward thrust allows for operator to be in balance.
- Vertical inlet for underwater use.
- Constructed of stainless steel for corrosion resistance.

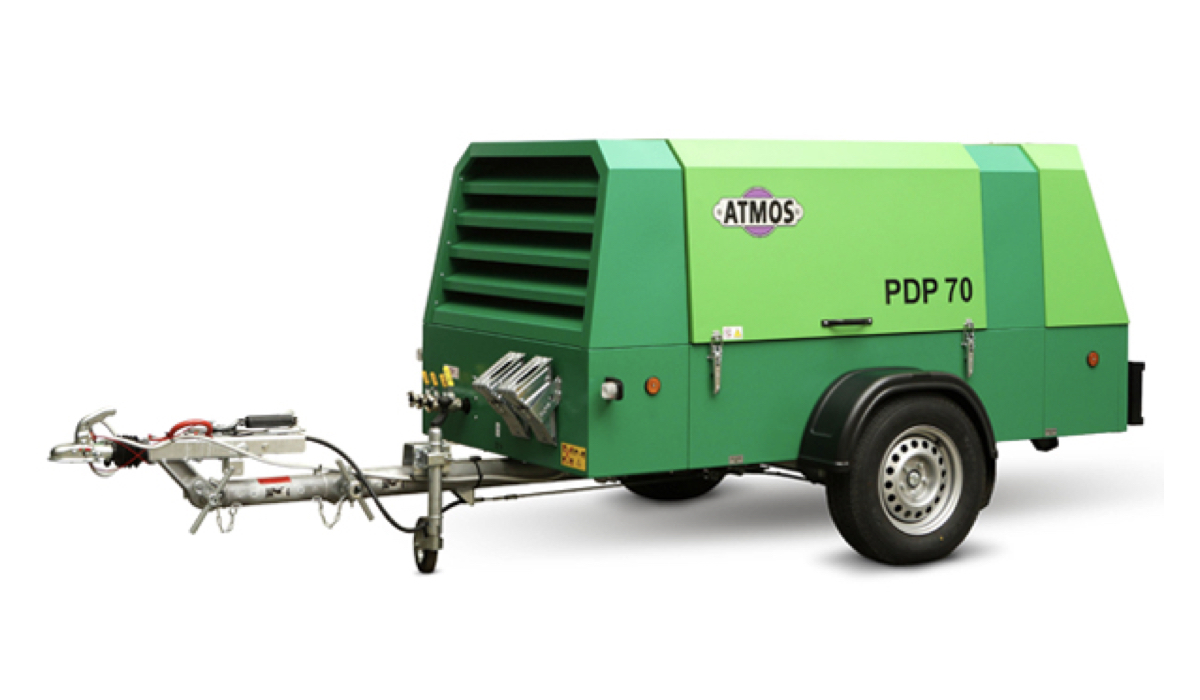

Atmos Air Compressor
- Model 1012-1
- Operating Pressure 7.0
- Bar Operating speed 2200 min-1
- Air Output 7.0
- Engine Power
- 400 CFM
Hydraulic Power Pack
- Model: PP55
- Engine: Perkins
- Capacity: min. 55hp
- Bar: approx:250- 210
- Pump flow: approx :80-70 liters per min
- Hydraulic tank Approx 60 –m50 liters
- Fuel tank: 30 – 20 lit.

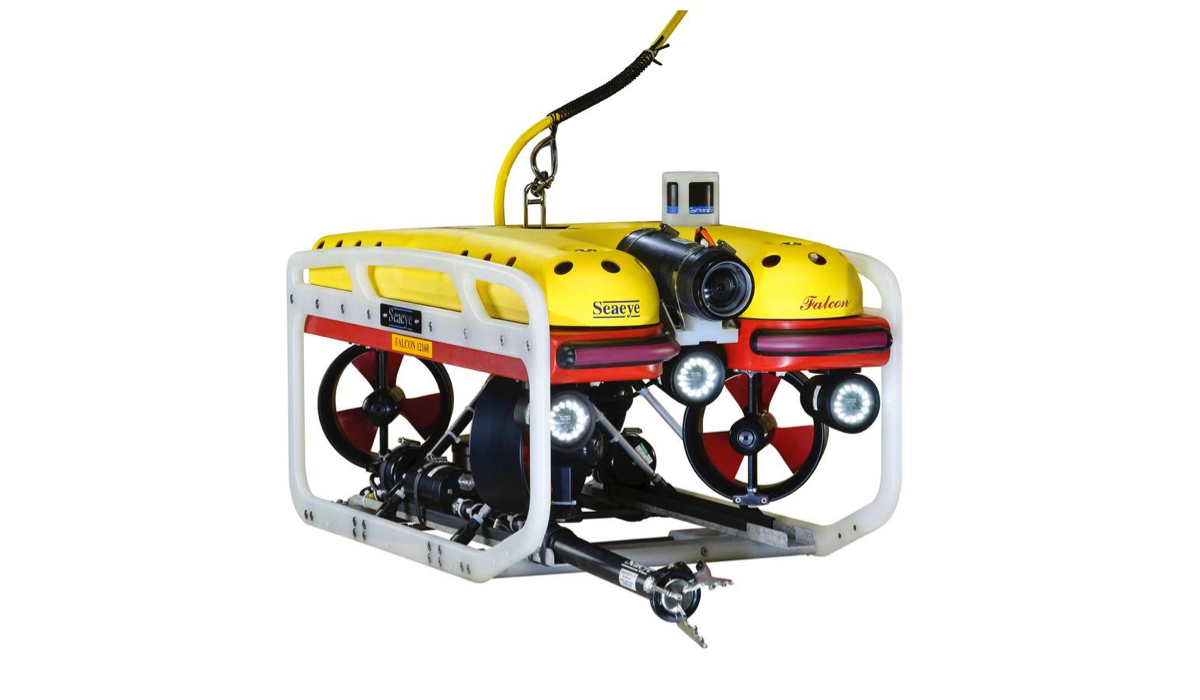

Seaeye Falcon ROV
Falcon 12474 surface system consists of:
Falcon Surface Equipment
- Power Supply Unit
- Surface Control Units
- Monitor
- Hand Control Unit
- Touchscreen Monitor
- Keyboard
- Flight Cases
- Winch09
- Laptop for Gemini Sonar
- ROV Chassis – type 12CH-1.
The ROV frame is constructed from rugged polypropylene and fitted with GRP Encapsulated syntactic buoyancy foam to provide neutral buoyancy. It contains the following equipment
Vehicle Power Supply Unit – type SI-VPSU02.
This unit converts the 500VDC sent form the surface to a 48VDC using a Switch Mode PSU. The PSU includes an over-current self-resetting switch.
A short power cable connects 48 Volts DC to the ROV Junction Box.
Any third party 24V or 12v nodes are connected through individual external DC-DC converters to the 48V rails.

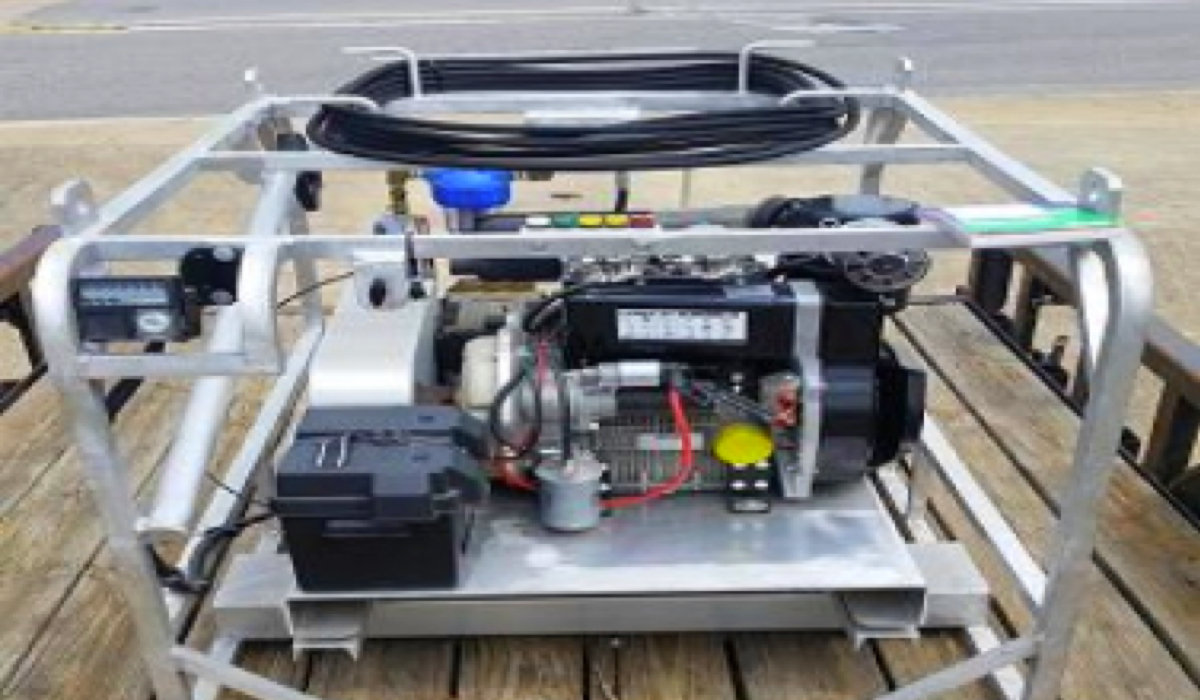

Kohler Hydrostatic Pressure Testing Machine
Serial nos: 5254810/20/141309:12
- Tank specification: 49ltrs
- MFG. RDS MFG (wo#160392)
- MAT. AL.5052-H32
- PART #:59180
High flow hydrostatic testers
This range of hydro testers consist of reliable Udor diaphragm pumps driven by diesel engines. Electric motor drive is also available. Standard models are available in 20 to 40 BAR configurations
Maximum test pressure 3psi/20kpa
Aussie High Pressure Hydrostatic Testing Machine
Aussie High Pressure Hydrostatic Testing Machine
- Serial nos:14070270
- Pump RAL:2035
- Pressure Bar 350-5075 psi
- MODEL:ABHURRICANEHTP
- Sn:F1609041
Pressure Recorder
ROTOTHERM
- Model: CSP100
- SN:E000005241/3/4
- Range: 0- 500bar.

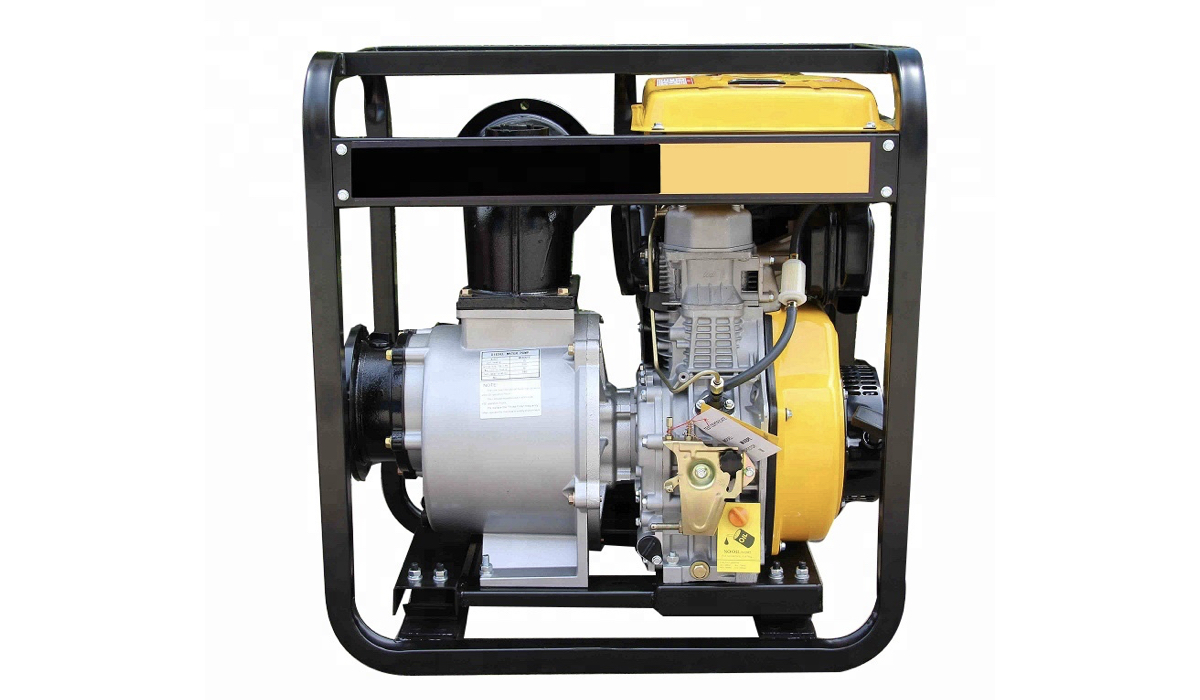

High flow rate pumping machine and accessories
- Kipor power diesel engine
- Model: KM170F(A)
- TYPE: in line, single cylinder, 4 stroke, Air cooled, directed injection
- Rated power kw/r/min: 2.5/300
- Rated speed: 2.8/3600
- Battery capacity: 12v, 24Ah-36Ah
Yanmar Outboard Engine
- Yanmar outboard engine
- Model: D3606185
- 26.5KW/4500min
- Yanmar
- Made in japan

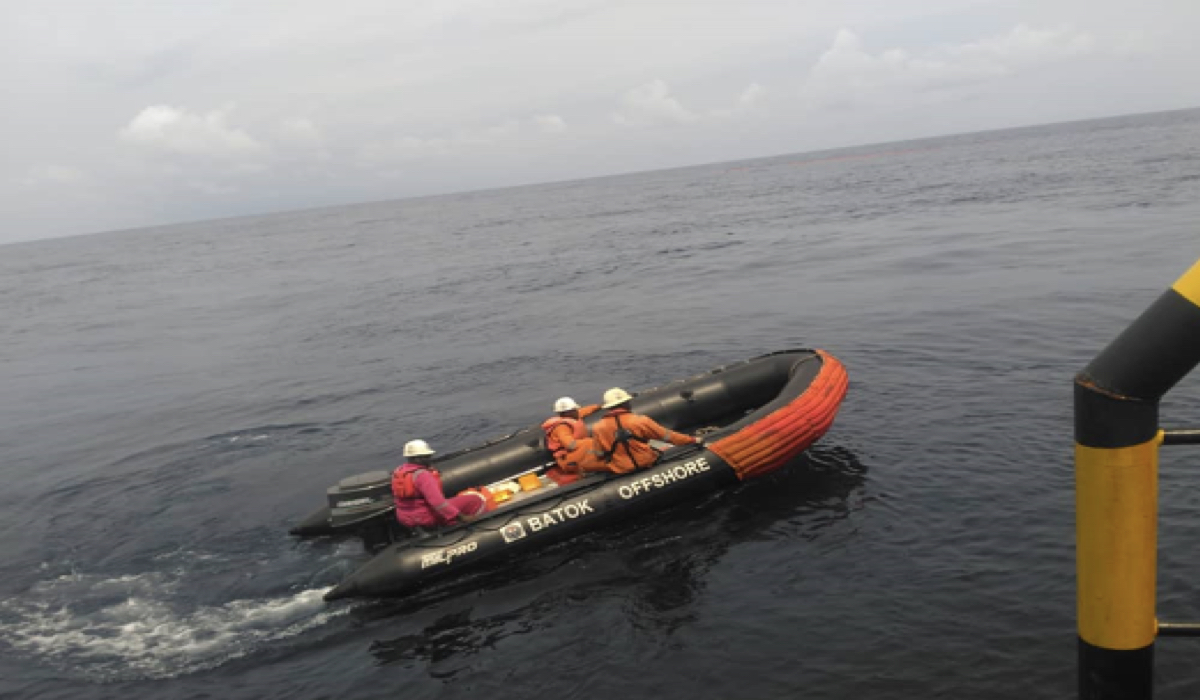

Milpro Zodiac boat
- Inflatable Boat, MK5 HD,ZODIAC
- Material : Rubber
- Pressure : 0.125 bar (3.48 psi)
- Weight : 2520 kg (5556 lb)
- Conform To ISO6185 VIL. CE: 0607 Manufacturer Zodiac
- Manufacturer Part Number MK5 HD
Big Blue Miller welding
GENERAL SPECIFICATIONS
- Industries Interests: Construction, Fabrication, Infrastructure, Maintenance and Repair – Field Operations, Mechanical Contracting, Pipe Fabrication / Construction, Work / Service Trucks.
- Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
- Engine Idle Speed: 1500 RPM
- Engine Weld Speed: 1800 RPM
- Fuel Type: Diesel
- Wieldable Metals: Steel, Stainless Steel
- Rated Output: 400 A at 24 V, 100% Duty Cycle , 350 A at 27 V, 100% Duty Cycle
300 A at 32 V, 100% Duty Cycle - Current Type: DC
- Single Phase Generator Continuous Power: 10000 W
- Single Phase Generator Peak Power: 12000 W
- Max Open Circuit Voltage: 85 VDC

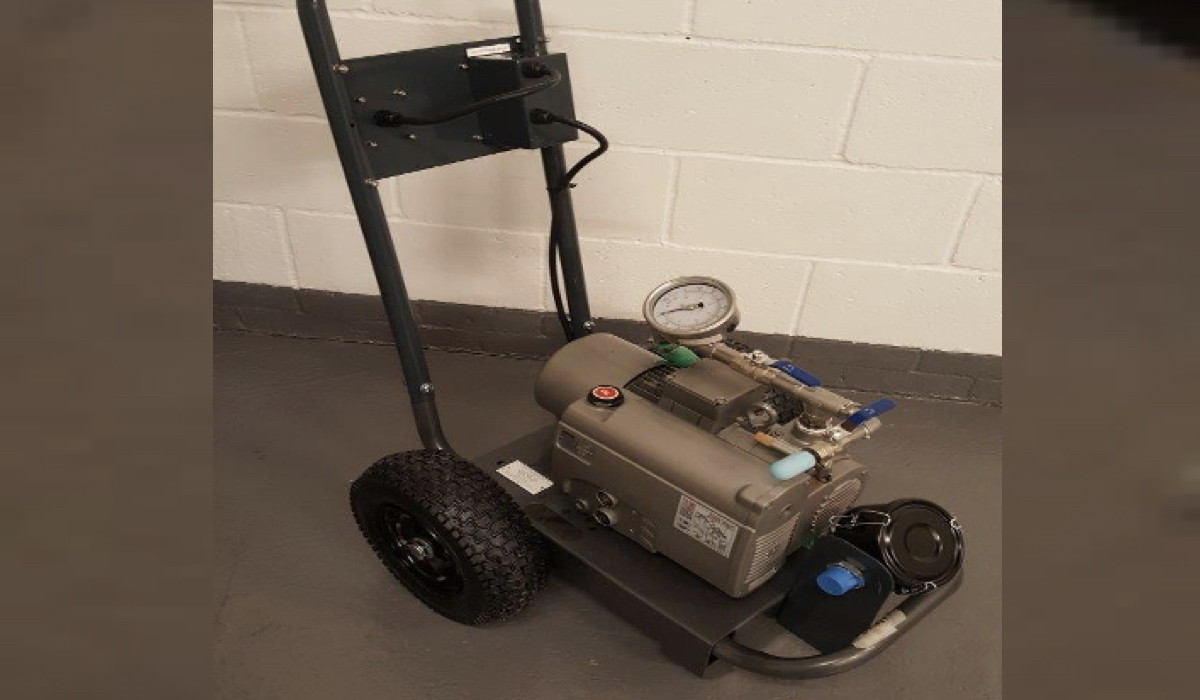

Vacuum Test Machine & Accessories
These test units are used to pressure test strings of offshore floating hoses to meet GMPHOM international requirements.
They have been designed for offshore and onshore use including in hazardous atmospheres. A number of these units have been supplied as a strategic reserve for a major oil producer.
Our OCIMF Hose Test Equipment now meets the new GMPHOM requirements for testing of offshore hoses.
Hi Force air driven hydraulic torque wrench machine
PRODUCT AND TEST SPECIFICATION
Hydraulic Torque wrench:
- Model : TWH54N
- Serial No: BK3824
- Rated torque capacity: 6037.00 N/M
- Rated pressure: 700.00 bar
- Test torque: 7546.25N/M
- Test pressure:875.00bar
- 3 speed Air Torque Pump
- Model: TPA07A
- Serial No: BL321A
- Rated pressure capacity 700 bar 10000 psi
- Test capacity 875 bar 12500 psi

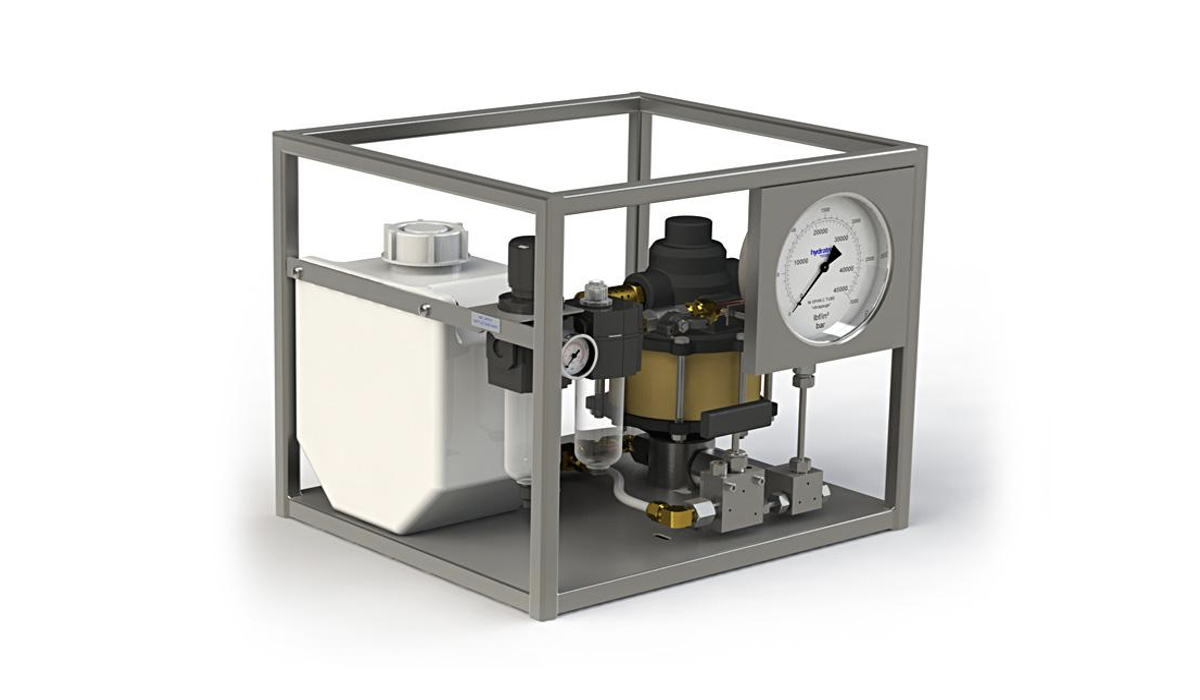

Hydratron Hydraulic Power Unit
Model: HPU-LW-1-L9H-N.LI
Serial No: 53812
Max WP: 1.900PSI
- Hydratron AZ-1 Air Driven Liquid HPU’s offer many desirable features:
- Ability to stall at a predetermined pressure and hold this fixed pressure without consuming power or generating heat
- No risk of flame or spark
- Infinitely variable speed/output flow rate control
- Infinitely variable output pressure control
- Standard models are suitable for oil or water applications
- Isolation chamber for Chemical applications
- No limit or adverse effects in continuous stop/start applications
- Proven reliability, easy to maintain and robust
Pneumatic Fender
Size diameter: 1500mm x 3000 mm long
Light Flanges
16″ & 20″ Light Flanges
Dimensions
• From 1/2″ to 60″ and more
Types
• Welding Neck, Slip on, Socket Welding, Blind, Threaded, Lap Joint, Long Welding Neck
• Pads
• AWWA, API, TEMA, SAE Flanges
• Orifice Flanges B16.36 (see datasheet)
• Spectacle plates
• Swivel Ring Flanges
• Anchor Flanges
• Misalignment Ball Flanges
Whether for a low pressure water line to high pressure chemical applications, Quality Forge fitting stocks pipe flanges for nearly every application. Our flange products are supplied with Test Certification, with complete details on the physical and chemical properties of the materials.

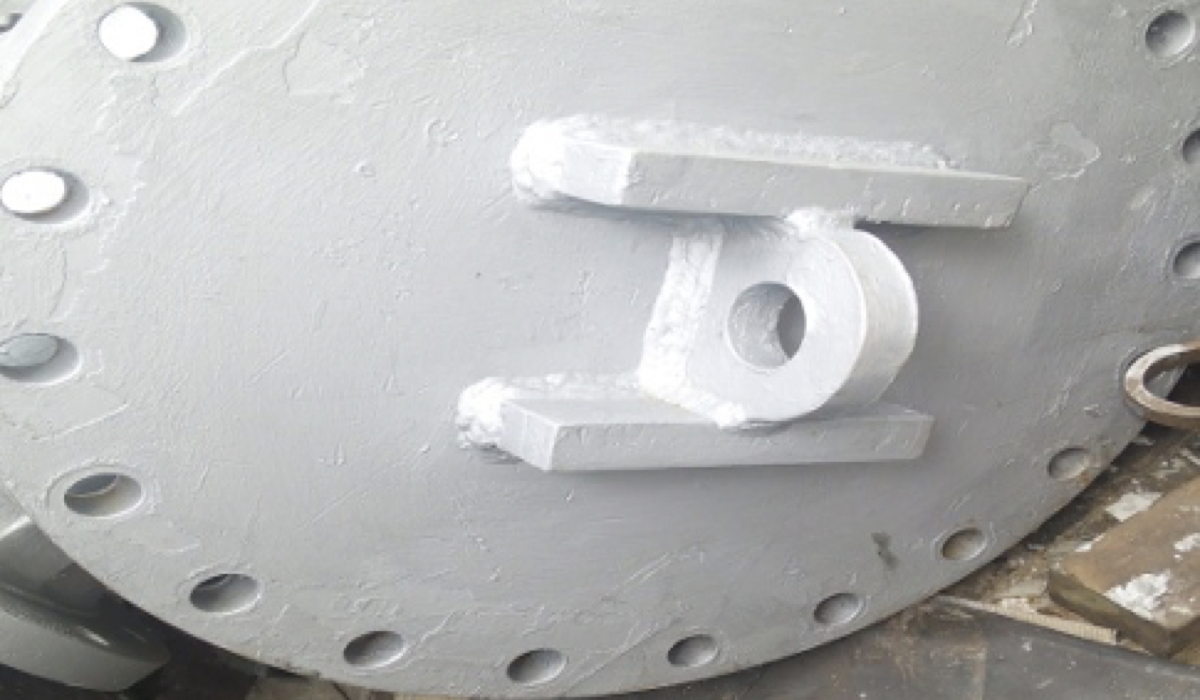

20 Inches Towing Flanges
Features Include:
• Forged, one-piece steel alloy drawbar
• I.D. of eye is induction hardened for wear resistance
• Tested in accordance with SAE J847

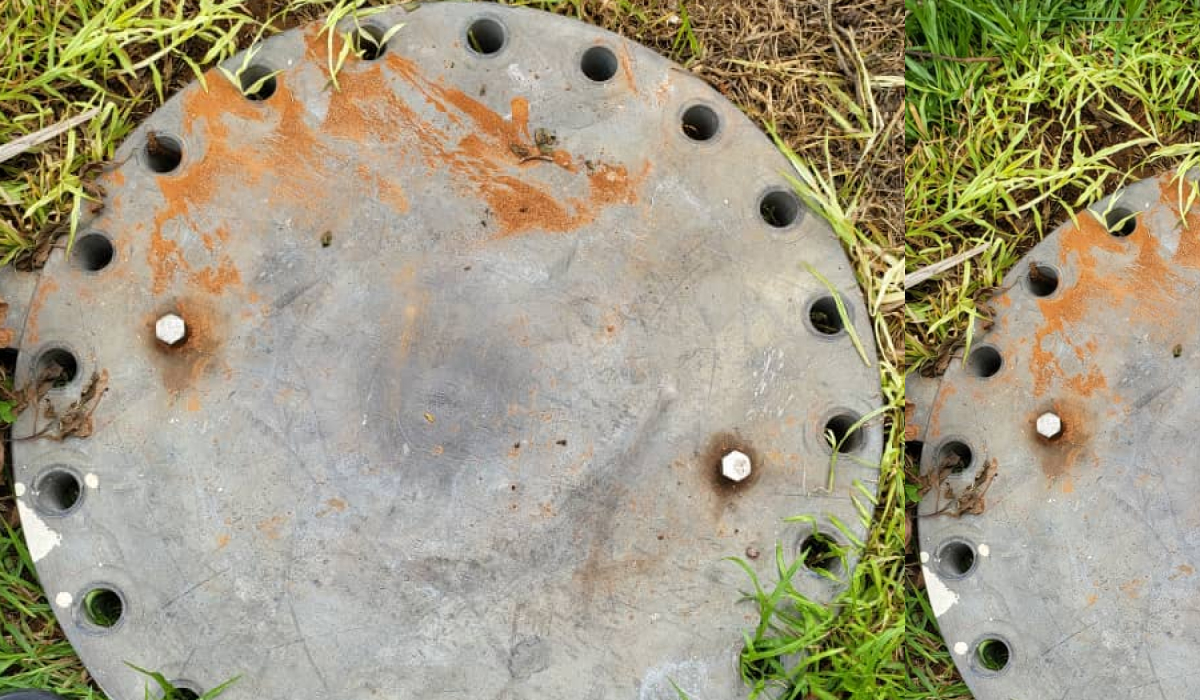

20 Inches Pressure Test Flange
Flange diameters, thickness, bolt circles, numbers and diameter of bolts for ASME/ANSI B16.15 – Cast Bronze Threaded Fittings – 300 lb Bronze Flanges with plain faces

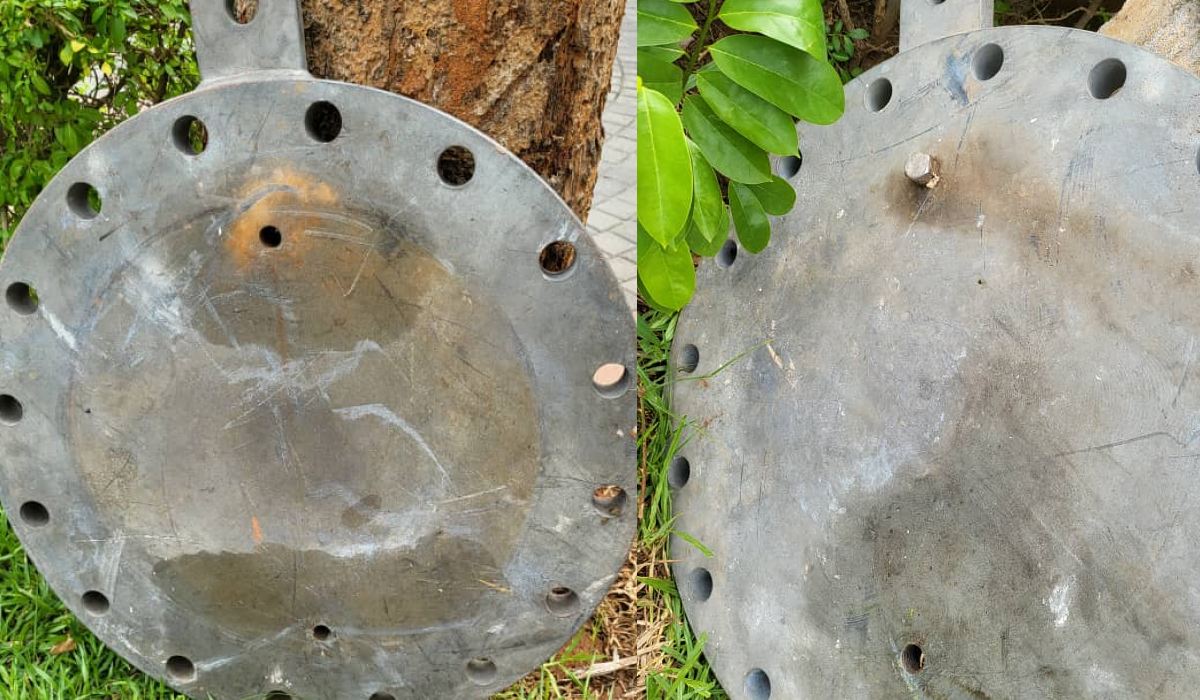

16 Inches Pressure Test Flange
Flanges can withstand different pressures at different temperatures. As temperature increases, the pressure rating of the flange decreases. For example, a Class 150 flange is rated to approximately 270 PSIG at ambient conditions, 180 PSIG at approximately 400°F, 150 PSIG at approximately 600°F, and 75 PSIG at approximately 800°F.

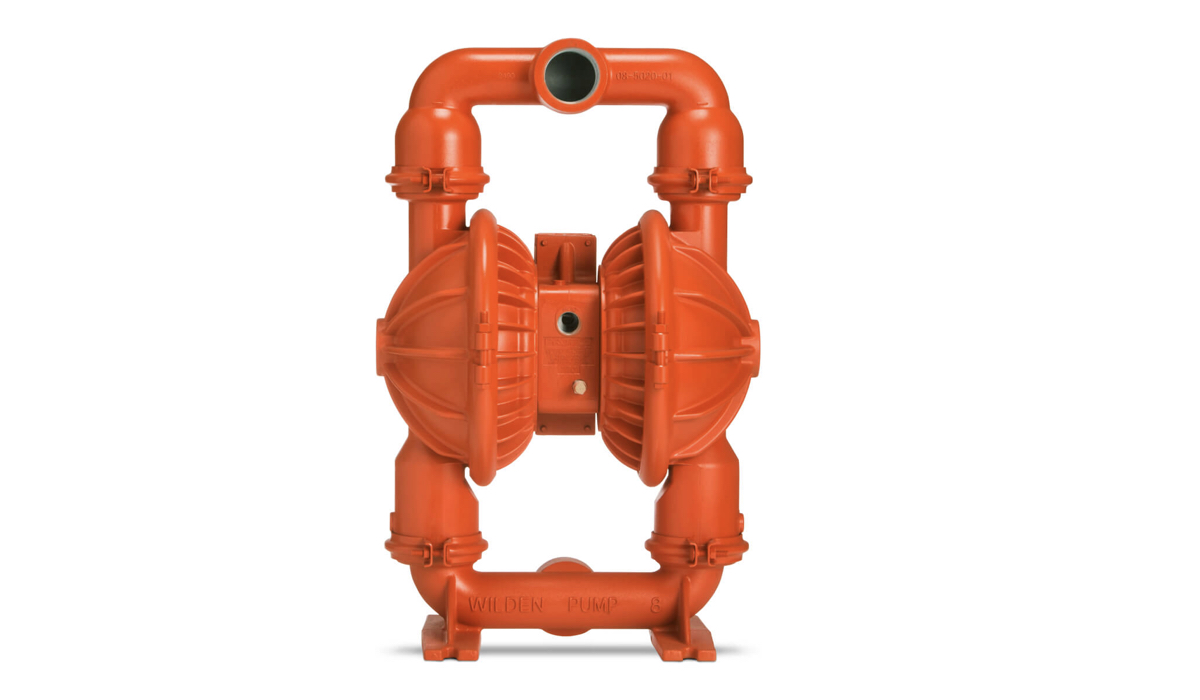

2 inches Diaphram Wilden Pump
A diaphragm is also know as membrane pump, air operated double diaphragm pump is a positive displacement or Teflon diaphragm and suitable valves on either side of the diaphragm check valve, butterfly valve, flap valve or any other form of shut-off valves to pump a fluid.
